2-sides view Jolie
in pear wood
baffle and base
grey, design ring titanium

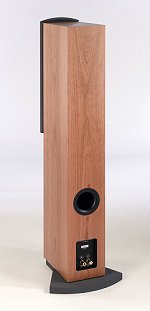

rearview Jolie in cherry wood,
grey baffle and base,
Si-Wiring terminal
|
| Driver configuration and construction method |
| |
2-way-loudspeaker with 3 separate chambers,
bass-reflex cabinet with an aerodynamically-shaped bass-reflex tunnel
MDF-construction with wall-dampening by steel ball-filled inner chambers
|
| Drivers |
| |
2 woofer ø 150 mm, 26 mm voice-coil, aluminum cone
1 fullrange driver: ø 104 mm, 20 mm voice-coil, NRSC-fibre glass cone
|
| Crossover |
| |
2nd-order filter (12 dB), with phase- and impedancecorrection, individually computer-simulated for each loudspeaker and built only with low-loss air coil inductors and capacitors
Tolerances < 1%
Eliminating circuit boards and connecting wire, the components of each way are mounted in free air, radially surrounding a common ground
Si-Wiring-connector with 1 pair nextgen (TM) WBT-binding posts
or
Bi-Wiring-connector with 2 pairs of nextgen (TM) WBT-binding posts (optional)
|
| Crossover frequency |
| |
250 Hz
|
| Frequency range |
| |
40-22,000 Hz (-6dB)
50-19,000 Hz (± 2.0 dB)
|
| Matching |
| |
better than ± 0.75 dB (left/right loudspeaker)
better than ± 0.75 dB (absolute, to reference loudspeaker)
Individual measuring protocoll for each loudspeaker
|
| Bass tuning |
| |
45 ± 2 Hz
|
| Impedance |
| |
Nominal 4 Ohm
Minimum 2.8 Ohm at 125 Hz
|
| Power handling |
| |
160 Watt continuous
|
| Efficiency |
| |
88.0 dB (1 Watt/1m)
|
| Dimensions |
| |
1,135 x 170 x 290 mm (height x width x depth)
|
| Weight |
| |
25 kg
|
| Available finishes |
| |
Cabinet:
All available fine wood finishes,
Paint in all RAL- or automotive-colors, Nextel-Microstructure paint
Baffle/Base:
titanium (Nextel S774), grey (Nextel B34) or anthracite-black (Nextel S139)
Chassis cover (optional):
Stretch fabric, light grey, grey, or black
Design Ring:
titanium (Nextel S774), grey (Nextel B34) or anthracite-black (Nextel S139)
|
| Guarantee |
| |
60 months full guarantee
|
| |
| |
Technical modifications reserved.
|
|
|
